AAMA 501.2 isa field-applied water test standard used to verify the water-tightness of installed storefronts, curtain walls, and sloped glazing systems. It involves using a specialized spray nozzle at 30-35 PSI to spray joints and seals at a rate of 1 minute per lineal foot, typically testing a minimum of 100 sq. ft.

Key Aspects of AAMA 501.2 Testing:

• Purpose: It acts as a quality assurance check for field-installed glazing components to detect leaks early.

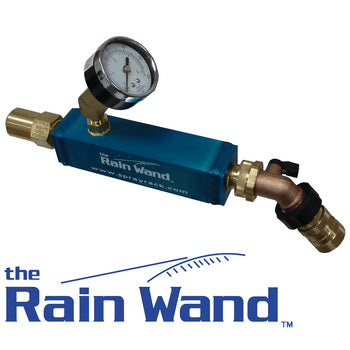

• Procedure: A, specialized rain wand kit with a pressure gauge applies water at 30-35 PSI, held 12 inches away from the surface.
• Test Area: The test is applied to joints and seals for 5 minutes, usually with the interior left unfinished to easily detect water intrusion.
• Failure Criteria: Any water penetration that passes the interior plane of the seal, or more than 1/2 oz. of water collecting on interior framing within 5 minutes, constitutes a failure.
• Usage: Commonly used for new construction, it is suitable for checking for water intrusion in existing structures as well.

Water intrusion through windows accounts for over 70% of construction litigation, making window leak testing one of the most important preventive measures property owners can take. What starts as a small leak can quickly lead to mold growth, structural damage, and costly repairs that far exceed the investment in professional testing.

How Professional Testing Works

Professional window leak testing follows industry standards like ASTM E1105 and ASTM E331, which simulate real-world weather conditions. These methods use calibrated spray racks—specialized equipment with precisely positioned nozzles that deliver water at approximately 5.0 gallons per hour per square foot, replicating about 8 inches of rain per hour.

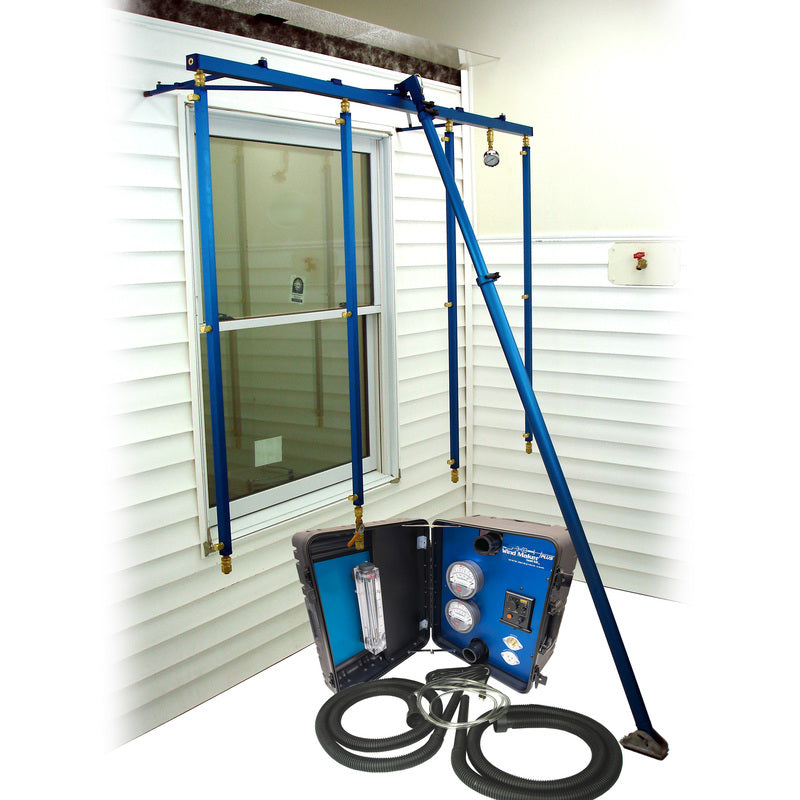

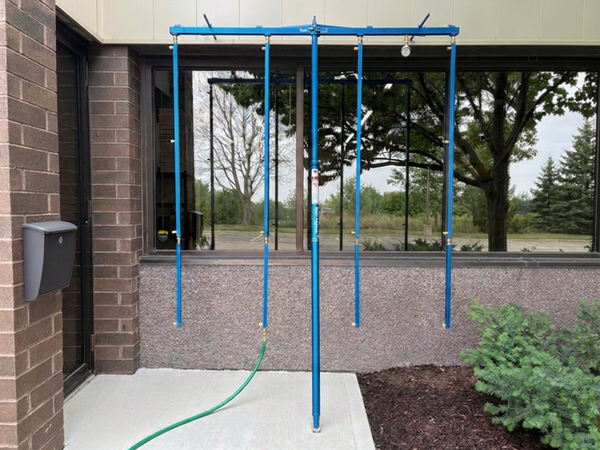

Companies like sprayrack.com manufacture industry-standard equipment including the Rain Maker spray rack and Wind Maker test vacuum. Together, these tools simulate wind-driven rain conditions, allowing water intrusion specialists to identify vulnerabilities before they become serious problems.

Quality Assurance and Forensic Applications

Window leak testing serves two purposes. For new construction, it verifies proper installation and ensures compliance with building codes. For existing buildings, it diagnoses the source of known leaks by systematically testing different areas to pinpoint failures in frames, seals, caulking, or wall assemblies.

Prevention Pays

Early detection through ASTM E1105 and E331 testing makes corrections easier and less expensive. Post-construction water damage repairs, including mold remediation and structural work, can cost tens of thousands of dollars. Regular testing—ideally once or twice annually—protects your investment and provides peace of mind that your building can withstand the elements while maintaining structural integrity and occupant comfort.

Air leakage through windows and doors doesn't just waste energy—it drives up utility costs, reduces occupant comfort, and can even contribute to moisture problems within building assemblies. That's why ASTM E783 air leakage testing has become essential for ensuring building envelope performance.

Understanding Air Infiltration

While water leaks are visible and dramatic, air leakage is a silent performance killer. Uncontrolled air movement through windows and doors forces HVAC systems to work harder, increases energy consumption, and creates uncomfortable drafts for building occupants. Over time, air infiltration can also carry moisture into wall cavities, potentially causing hidden damage.

How ASTM E783 Testing Works

ASTM E783 is the standard test method for field measurement of air leakage through installed exterior windows and doors. The test uses specialized equipment to create controlled pressure differences across the building envelope, simulating wind conditions that buildings experience in real-world situations.

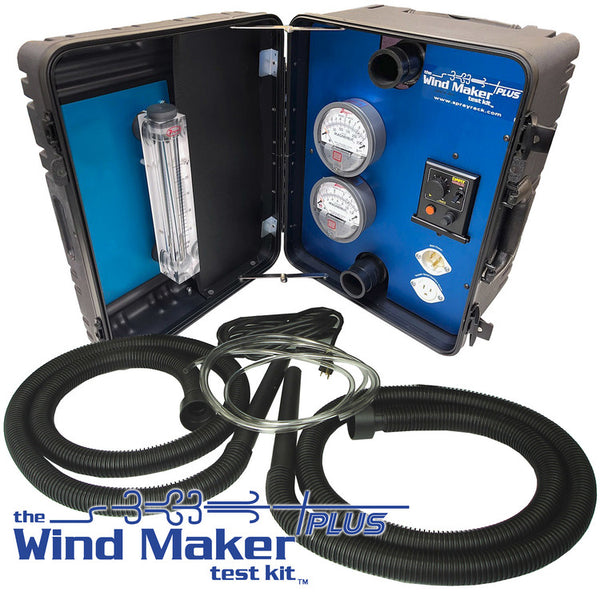

Equipment like the Wind Maker from sprayrack.com generates these pressure differentials, allowing testers to quantify exactly how much air is passing through window and door assemblies. This objective measurement reveals whether installations meet specified performance criteria and building code requirements.

Quality Control and Diagnostics

For new construction projects, ASTM E783 testing provides quality assurance that windows and doors are properly installed and performing as designed. Testing typically occurs at intervals like 25%, 50%, and 75% project completion, catching installation problems early when corrections are still simple and affordable.

For existing buildings experiencing comfort issues or high energy bills, E783 testing helps diagnose air leakage problems. By identifying specific areas where seals have failed or installation gaps exist, building owners can target repairs effectively rather than guessing at solutions.

The Energy and Comfort Payoff

Buildings that pass ASTM E783 air leakage standards enjoy significant benefits: lower heating and cooling costs, improved indoor air quality, better temperature control, and enhanced occupant comfort. Meeting these performance standards also helps buildings achieve energy efficiency certifications and comply with increasingly stringent building codes.

Investing in professional air leakage testing protects your building's performance and your bottom line, ensuring that your windows and doors function as the high-performance barriers they were designed to be.
